Hazardous Waste Pyrolysis
Niutech - Intelligent Continuous Organic Hazardous Waste Pyrolysis Production Line
Niutech - Intelligent Continuous Organic Hazardous Waste Pyrolysis Production Line is an advanced treatment system designed for the characteristics of organic hazardous waste. It can process a variety of waste types, including coal tar slag, waste mineral oil, waste resin, paint sludge, and chemical waste salt, achieving harmlessness, volume reduction, and resource utilization of organic hazardous waste. The system incorporates over 110 patented technologies from Niutech and operates fully automatically from feeding to discharging via an intelligent control system. It features advanced flue gas treatment and waste heat recovery technologies, which minimize environmental impact and promote resource recycling.
Advantages
National Honor: Awarded the top honor in China's environmental protection science and technology—the State Scientific and Technological Progress Award.
Inclusive: Capable of disposing a wide range of organic hazardous wastes, including coal tar slag, waste mineral oil, waste resin, paint sludge, chemical waste salt, and more.
Excellent Energy Efficiency: By adopting a high-efficiency energy recovery system, it significantly reduces energy consumption while improving energy utilization and pyrolysis efficiency.
Safety Guarantee: Proprietary fully enclosed technology, coupled with multi-layer safety protection measures, ensures the safety of pyrolysis production.
Continuous Operation: Achieved through continuous feeding, discharging, and pyrolyzing processes, enabling uninterrupted operation.
What is Industrial Continuous Organic Hazardous Waste Pyrolysis Production Line?
It is used for the harmless treatment, volume reduction, and resource recovery of organic hazardous wastes. By pyrolyzing organic hazardous waste, the organic matter is decomposed into small molecules and separated from the raw materials.The resulting solid products can be used for further applications or treatment. Adhering to the principles of safety and environmental protection, it realizes the harmless and reduced treatment of organic hazardous waste and resource utilization.
Technical Parameters
Item |
Content |
Feeding Raw Materials |
Hazardous waste, such as coal tar residue, waste mineral oil, waste resin, paint residue, chemical waste salt |
End Products |
Depending on the raw materials, the harmless products are different |
Processing Capacity |
10000T/Y, 20000T/Y, 30000T/Y... |
Annual Running Time |
80000 Hours |
Production Form |
Continuous operation; continuous feeding and discharging |
Heating Form |
Adjustable, constant temperature |
Working Pressure |
＜100Pa |
Pyrolysis Temperature |
Low-temperature catalytic pyrolysis, adjustable temperature |
Automatic Level |
Fully automatic intelligent control |
Equipment Life |
No less than 10 years |
Environmemtal |
Comply with the most strict local emission requirement |

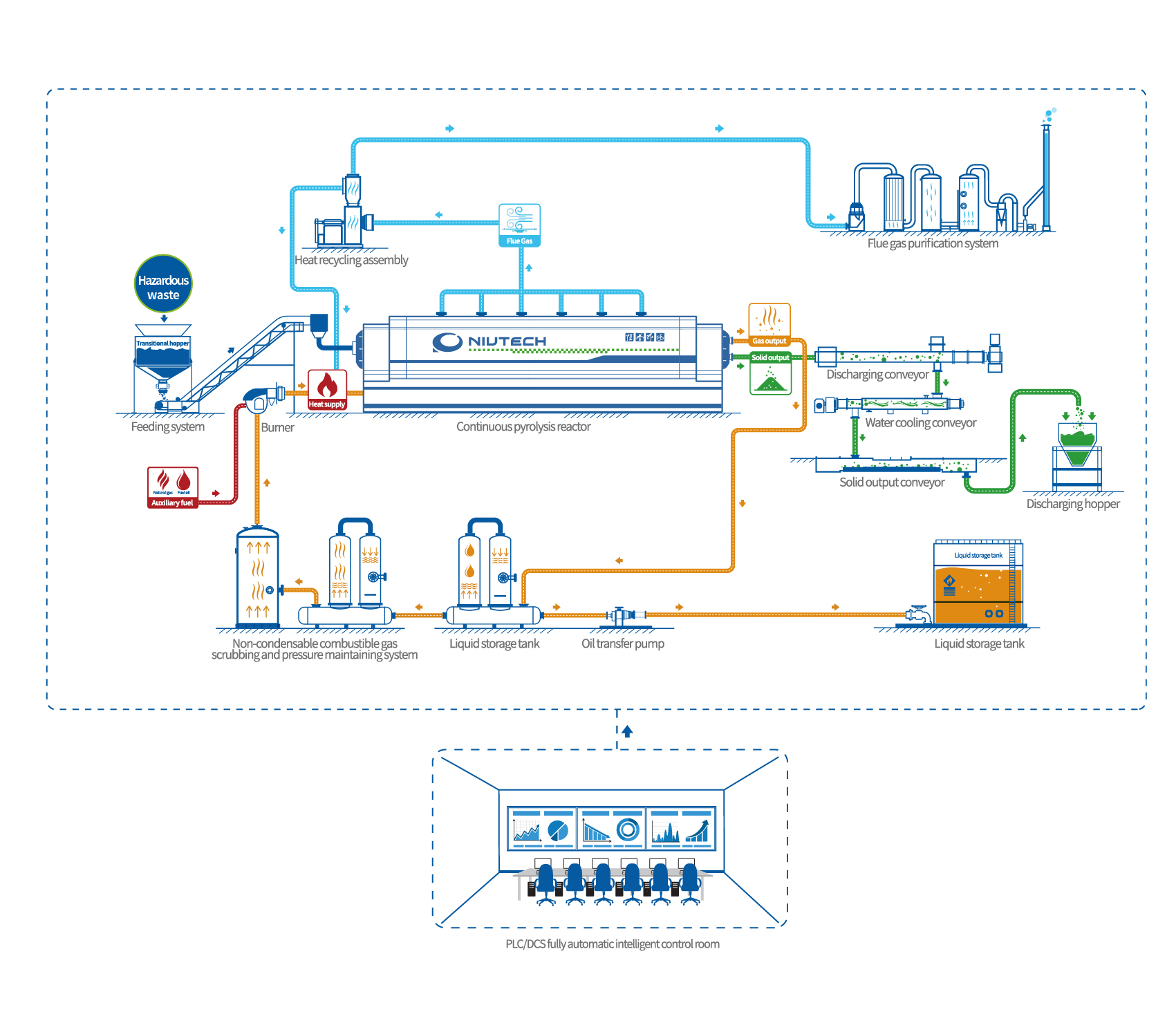

Technical Process
Main Technical Features
● High Eviromental BenefitNo chemical agents.Whole pyrolysis process is completed in the closed pipelines to avoid the dust, VOC leakage issue and the secondary pollution.
● Low processing costNo need sieving the stone.
Adopting the flue gas heat recovery technology for energy conservation and emission reduction.
Purified non-condenseble combustible gas could be used as fuel for supplying heat.
● High Automatic Control SystemPLC/DCS automatic intelligent control systemRectify a deviation automatically, alarm automatically
Sub Systems of Hazardous Waste Pyrolysis Machine
8 components to ensure the operation of hazardous waste pyrolysis machine.

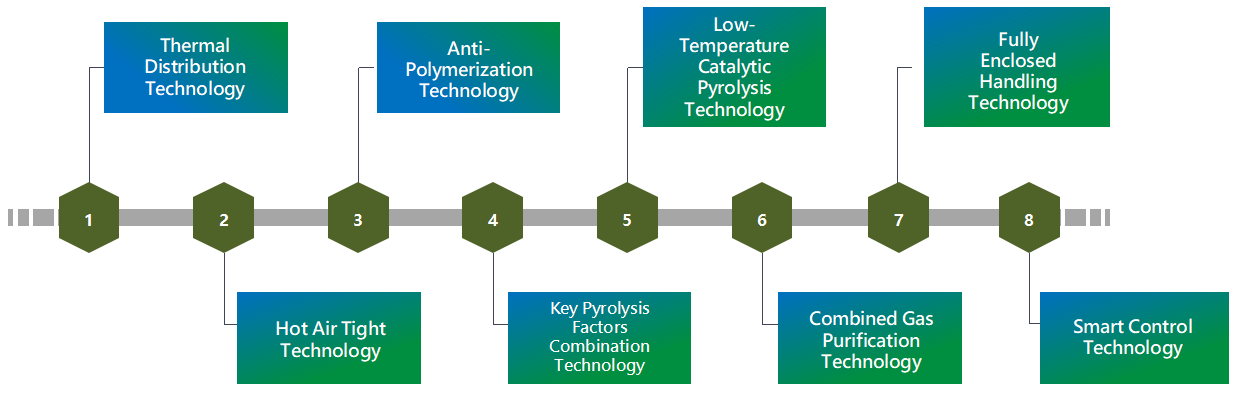

Core Technologies
Pyrolysis technology has some common difficulties, such as easy-coking of pyrolysis system, difficult dynamic sealing of feeding and discharging, and easy-polymerization of outputs.
The pyrolysis equipment designed and manufactured by Niutech contains nearly ten thousand technical parameters. Through the trial and error and systematic design for a series of key factors of pyrolysis technology such as heating temperature, heat transfer surface, operating pressure, and anti-polymerization techniques, Niutech have solved the technology difficulties above and realized continuous operation of pyrolysis equipment.
